Basic information
Navigation: magnetic tape
AGV type: load transfer conveyor AGV
Payload: 500kg, 1000kg, 1500kg, 2000kg
AGV size: middle
Material type: box& trays /materials

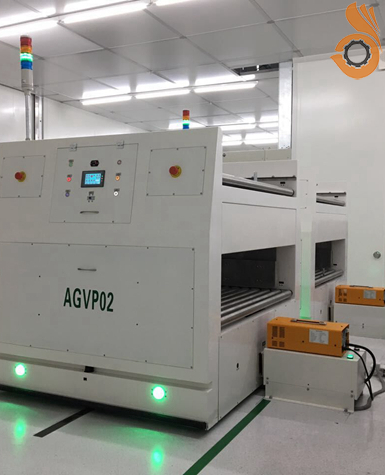

| Product | Omni-directional load transfer big size double conveyors roller AGV |
| Payload type | material directly transfer/ box and tray |
| Control Mode | MCU/ PLC |
| Size | L1400*W1200*H1200（mm） customized |
| Navigation | Magnetic tape navigation |
| Roller quantity | 2 roller conveyors |
| Direction of Moving | Forward, backward, sideward, rotate |
| Communication | Wireless LAN (Optional) |
| Load | 500KG,1000kg, 1500kg, 2000kg |
| Speed of Moving | 0-50 M/MIN |
| Guidance Accuracy | ±10mm |
| Stop Accuracy | ±10mm |
| Turning Radius | 0 (Radius of Tape Installation) |
| Driving Mode | Steering wheel driving |
| Power Supply of Driving | DC48V |
| Battery | Li battery |
| Charging Mode | Automatic Charging |
| Battery lifespan | Discharging Times: ＞1500 Times |
| Safety sensor range | Angle 0-180°, distant 0-3M adjustable |
| Safety Protection | Obstacle safety sensor+ bumper |
